Custom Suspended Poster Holder Kits

Select the size and quantity of acrylic poster holder you require for your display along with the panel clamps. Then choose either a ceiling to floor cables or wall to wall cables to suspend the poster holders .



acrylic poster holders

Single vertical clamp for panels up to 4mm thickSingle Sided Panel Clamp for 1.5mm Cable System - 4 clamps are required for each poster holder

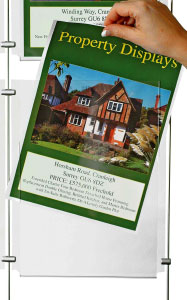

Acrylic Easy Access Poster Holders

A range of clear acrylic poster holders, with polished edges, that have been designed to suit any display requirement. Quick and easy to change your display, simply slide your posters in and out.

These easy access pockets are available to take standard posters from A5 to A0 in size and are designed to be used with either cable or rod display systems or with wall mounted supports. Choose from either portrait or landscape formats.

The non-reflective acrylic can help increase visibility in sunny windows or to reduce the glare from spot lighting.

Sizes A5 and A4 are 2mm thick, all others are 3mm thick.

Display centres:
A5: cable centre 182mm
A4: cable centre 244mm
A3: cable centre 331mm
A2: cable centre 454mm
A1: cable centre 628mm

Acrylic Poster Holders Price: Quantity:
A5 Acrylic Poster Holder £3.95
A4 Acrylic Poster Holder £5.25
A3 Acrylic Poster Holder £15.30
A2 Acrylic Poster Holder £24.00
A1 Acrylic Poster Holder £48.75
Single Sided Panel Clamp for 1.5mm Cable System £2.95


Ceiling to Floor Cables

1.5mm cable display system

Cable display fittings with 1.5mm galvanised steel cables are made from solid brass and finished in satin chrome. All cable components come with a lifetime guarantee. Suspended from the ceiling or wall or fitted into freestanding units, 1.5 mm tensioned cable displays will make products appear to be floating in mid-air.

4 metre long cable supplied complete with ceiling to floor fixings. The spring-loaded tensioner keeps the cable taut and looking its best at all times. The cable is made of galvanised steel, which means it will not fray, kink or mark easily.

The top of the cable has a special copper crimp to hold it securely - thus reducing the margin for human error. Also available with insulated cable for use on exhibition stands, just cut outer sleeving to accommodate fittings.

Dimensions: top fixing 16mm diameter, bottom fixing 15mm diameter. Fixings take up to no.10 screw.

Material: brass fixings, finished in satin chrome with galvanised steel cable.

Weight loading: 120kg maximum (subject to fixing).

1.5mm cable display system
Ceiling to Floor with 4 metre Cable Price Quantity:
Ceiling to Floor Kit with 4 metre Cable £12.50




Wall to Wall Cable Display System with 3 metre Cable

Wall to Wall Cables

Spring-loaded tensioner keeps the cable taut. The cable is made of galvanised steel, which means it will not fray, kink or mark easily. The cable display fittings are made from solid brass and finished in satin chrome. The cable can be cut to length using wirecutters. All cable components come with a lifetime guarantee.

Dimensions: cable fixing projects 40mm from wall, fixing plates 38mm diameter.

Fixings: take up to no. 10 screw.

Material: brass fixings, finished in satin chrome with galvanised steel cable.

Weight loading: 120kg maximum (subject to fixing).

instructionsUser Instructions

Wall to Wall Cable Display Price Quantity:
3 Metre Cable complete with Wall to Wall Fittings - (2 required for each kit) £17.63




For more information or advice on these products please call Louise Bradforth - 0117 952 6065 or Jo Burr - 0117 952 6067
